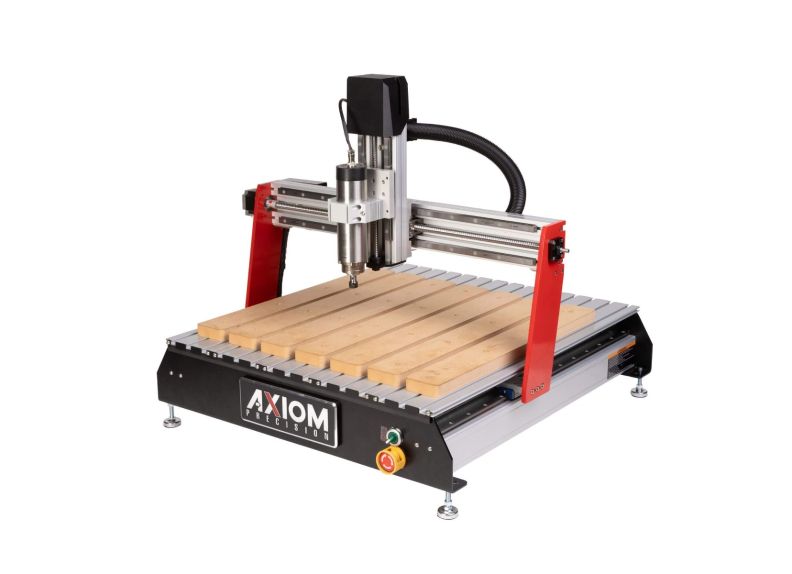

2X2 CNC Table (24 in. x 24 in.).

Call 844-630-1632 for availability
Stock Number
AX1-101
$4,499.99

Product Overview

Superior Accuracy & Repeatability, More Power & Speed


The Axiom 2X2 CNC delivers full-scale performance in a compact footprint—ideal for professionals, educators, and small shops looking to maximize precision in limited space.


Built on an industrial-grade platform, this 2' x 2' CNC features a steel frame, extruded aluminum gantry, and precision ball screws with prismatic linear guides on all axes—engineered for ±0.006" accuracy. Don’t let the size fool you—this is a true production-class machine.


A powerful 1-HP air-cooled spindle delivers speeds up to 24,000 RPM, matched with a generous 24" x 24" cutting area and 5.5" of Z travel for deep, clean cuts. With 200 IPM travel speeds, this machine keeps your workflow fast and efficient - whether you're working with wood, foam, or plastic. Included with your Axiom 2X2 are the UCCNC software and Vectric VCarve Desktop software (a $350 value) to turn designs into precise results—fast.


And when you need a hand? Axiom’s U.S.-based support team is here to help—before, during, and long after your first cut. Whether it's technical troubleshooting, application advice, or training resources, you're backed by a team that knows CNC inside and out.


Whether you’re scaling up, teaching tomorrow’s makers, or stepping into CNC for the first time, the Axiom 2x2 gives you professional-grade capability.


UCCNC Software




+ Show More
24" x 24" cutting area with 5.5" Z-axis travel
±0.006" accuracy with precision ball screws on all axes
Rigid all-metal frame and extruded aluminum gantry
1-HP air-cooled spindle with speeds up to 24,000 RPM
Prismatic linear guides on all axes, for smooth, repeatable motion
Includes UCCNC software and Vectric VCarve Desktop software (Windows Compatible)
Backed by Axiom’s expert U.S.-based support and service team
More Information
Stock NumberAX1-101
Accuracy +/-0.006 in.
Amps5
Cutterhead Speed (RPM)24000
Horse Power (HP)1
Input Power115V
Maximum Engraving Speed Inches Per Minute200
Prop 65Cancer and Reproductive Harm
Spindle TaperER11
Table Length (In.)24"
Table Width (In.)24"
Warranty1 Year
Gross Weight201
Net weight165.3
Travel Auto X Axis24 in.
Travel Auto Y Axis24 in.
Travel Auto Z Axis5.5 in.
Assembled Machine Dimensions (L x W x H) (In.)31.5 x 35 x 31.5
Precision Ball Screw AxisX/Y/Z
Router Bit Collet Included1/8" and 1/4"
